System QC
USMetrixQC® is a modern installation system consisting of elbows, extensions and tees, and manifolds made from the highest quality material, which is resistant to high temperatures. The new quick connect systems are very reliable and durable, due to the special design of the o-ring systems and their reliable accessories.This system ensures a long life expectancy and reliable performance of the connectors,even in the case of tense tubing, because it corrects the eventual movement of every particular element.
| The quick connect systems we offer can be applied with other tubing systems, made from such materials as: PEX, LDPE, PE, MDPE and HDPE. |  |

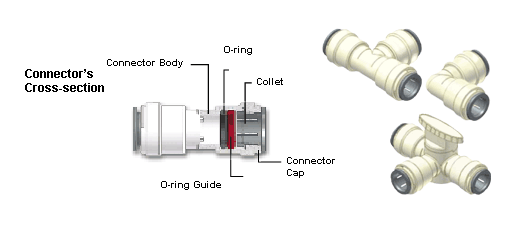

 | Unique construction protects the tubing’s connectors, which allows the problem free installation of the system in places where there is high vibration, or where the water system requires flexibility during work time under pressure. |
| The perfectly smooth insides of USMetrixQC® connectors ensure an increase of nearly 30% in the water flow rate,and prevent the build-up of contaminants inside the tubing. |  |
| USMetrixQC® quick connectors are used for tubing with a diameter of 16mm. Matching and fitting USMetrixQC® quick connectors is very easy – you only have to insert the end of the tubing into the connector without the need of special tools. It is also possible to connect directly all the connectors with each other, which improves the connections of a complicated installation. |  |

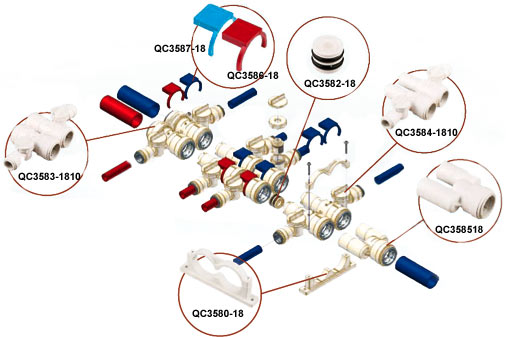

Manifolds
Varied configuration of manifolds,
Possibility of repeat use of enclosed connectors, even after being connected to,and disconnected from the tubing several times,
Easy expansion of the system,
Ideal application for floor heating.
USMetrixQC® modern manifolds can be designed and created in various configurations to meet specific requirements. Light,aesthetic and easy to use means the ideal solution. USMetrixQC® manifolds can be applied in drinking water and central heating systems. | | Features and advantages of the USMetrixQC® system:
easy and quick installation,
excellent zero-leak connections,
materials are light in weight enabling easy transport and installation,
many years reliable use and function,
unique construction which enables the pipe to rotate under pressure,
30% greater flow rate than in other connectors,
compatible with different CPVC, PVC, PEX and copper water systems.
|
